全自動真空碳氫清洗機主要由超聲波清洗槽和超聲波發生器組成。超聲波清洗槽采用堅固有彈性的不鏽鋼製成，底部裝有超聲波換能器振子；超聲波發生器產生高頻高壓，通過電纜連接線傳給換能器，換能器與振動板共同產生高頻共振，使清洗槽中的溶劑受到超聲波作用。清潔汙垢的動作。

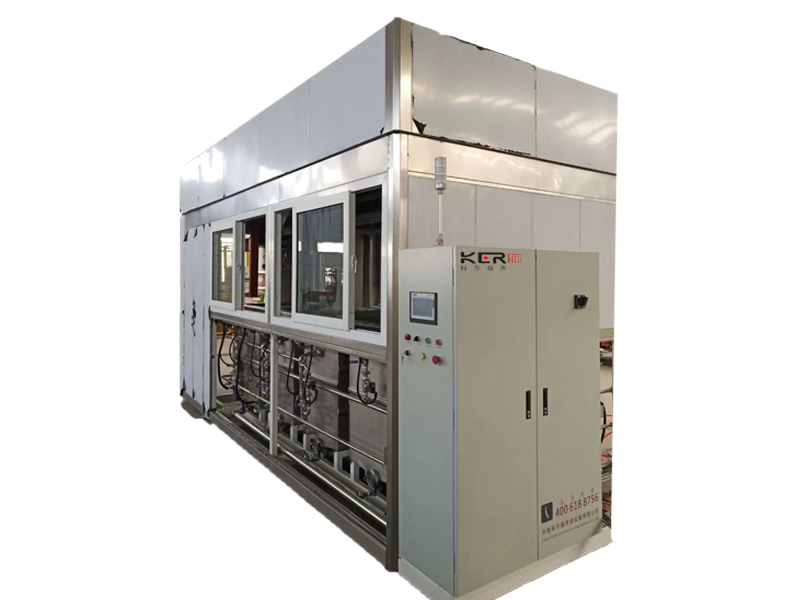

The automatic vacuum hydrocarbon cleaning machine is mainly composed of an ultrasonic cleaning tank and an ultrasonic generator. The ultrasonic cleaning tank is made of solid and elastic stainless steel, and the bottom is equipped with an ultrasonic transducer vibrator; The ultrasonic generator generates high-frequency and high-voltage, which is transmitted to the transducer through the cable connecting line. The transducer and the vibrating plate jointly generate high-frequency resonance, so that the solvent in the cleaning tank is subjected to ultrasonic action. The action of cleaning dirt.

當聲壓或聲強達到一定程度時，氣泡會迅速膨脹，然後又突然關閉。在此過程中，在氣泡閉合的瞬間產生衝擊波，從而在氣泡周圍產生1012-1013pa的壓力並進行局部溫度調節。這種超聲波空化產生的巨大壓力可以破壞不溶性汙垢並使它們分化成溶液。蒸汽型空化對汙垢的直接和反複影響。

When the sound pressure or intensity reaches a certain level, the bubble will expand rapidly and then suddenly close. In this process, a shock wave is generated at the moment when the bubble closes, resulting in a pressure of 1012-1013pa around the bubble and local temperature regulation. The huge pressure generated by this ultrasonic cavitation can destroy the insoluble dirt and make them differentiate into solutions. Direct and repeated effects of steam cavitation on fouling.

超聲波發生器將交流電轉換成超聲波頻率的功率，其頻率範圍一般為16khz-68khz，高可達1000khz。然後，電力通過電纜傳輸到傳感器。超聲換能器通常由幾個平行的聲頭組成。在這裏，電能轉換成同頻率的機械振動能並傳遞到清洗槽，從而在清洗液中形成來回振動的超聲波聲場。

The ultrasonic generator converts alternating current into ultrasonic frequency power. Its frequency range is generally 16khz-68khz, up to 1000khz. The power is then transmitted to the sensor by cable. Ultrasonic transducers are usually composed of several parallel sound heads. Here, the electric energy is converted into mechanical vibration energy of the same frequency and transmitted to the cleaning tank, so as to form an ultrasonic sound field that vibrates back and forth in the cleaning solution.

在超聲聲場中，由於周圍液體補給較晚，在振動負壓區形成大量微真空氣泡。當正壓到來時，微泡在壓力下突然閉合，液體之間的劇烈碰撞產生巨大的衝擊波，可形成數千至數萬個大氣壓和瞬間高溫。這就是超聲波的“空化”效應。氣蝕具有良好的清洗和乳化作用，可以將被清洗工件表麵的油汙分離出來，從而達到快速清洗的目的

In the ultrasonic field, a large number of micro vacuum bubbles are formed in the negative pressure area of vibration due to the late supply of surrounding liquid. When the barotropic pressure comes, the microbubbles suddenly close under pressure, and the violent collision between liquids produces a huge shock wave, which can form thousands to tens of thousands of atmospheres and instantaneous high temperature. This is the "cavitation" effect of ultrasound. Cavitation has good cleaning and emulsifying effects, and can separate the oil stains on the surface of the cleaned workpiece, so as to achieve the purpose of rapid cleaning

此外清潔對象的大小決定了清潔籃的大小，從而決定了所需的設備類型。為了讓超聲波能夠從各個方麵發揮作用，建議選擇體積稍大的設備，這也為以後的擴展提供了回旋餘地。清潔的難度取決於被清潔物體的幾何形狀和汙染的類型。對於複雜的清洗任務，建議增加蒸汽清洗或噴霧清洗等預處理步驟。加熱後的清洗液有利於縮短清洗時間，更快去除汙染物。因此，對於各種清洗物的清洗，通常使用帶有加熱裝置的超聲波清洗設備。

In addition, the size of the cleaning object determines the size of the cleaning basket, thus determining the type of equipment required. In order to make ultrasonic wave play a role in all aspects, it is recommended to select equipment with a slightly larger volume, which also provides room for future expansion. The difficulty of cleaning depends on the geometry of the object to be cleaned and the type of contamination. For complex cleaning tasks, it is recommended to add pretreatment steps such as steam cleaning or spray cleaning. The heated cleaning solution can shorten the cleaning time and remove pollutants faster. Therefore, ultrasonic cleaning equipment with heating device is usually used for cleaning various cleaning materials.
